Product Information

FEATURES

• Powerful 5 Amp Motor, 18,000 RPM For fast stock removal and a smooth finish
• Electronically-Counterbalanced Single-Blade System automatically positions blade at ideal cutting angle Reduces drag and provides fast operation and smooth finish. Eliminates uneven planing caused by misaligned blades.
• Equipped with Bosch Woodrazor™ micrograin carbide blades, which resist fractures from nail and staple strikes. Last up to 2 times longer on 3365 than standard carbide blades on other planers.
• Ratcheting Depth Knob Allows fool-proof setting of depth increments from 0″ to 5/64″ (2.0mm) within one revolution. No need to re-zero the depth.
• Chip Ejection Switch Directs shavings left or right
• Edge Guide Fence  Ensures consistent planing through entire workpiece. Has a protective shield that covers the section of blade not in use
• Lock-off Release Button  Helps avoid accidental starts
• Park Rest Stand Protects blade and workpiece
• Double insulated, UL listed, complies to OSHA

Includes:

• (2) Woodrazor^TM Blades -- PA1202
• Guide Fence -- PA1203
• Blade Wrench -- 2 607 950 025
• Chip Bag -- 2 605 411 035

SPECIFICATION

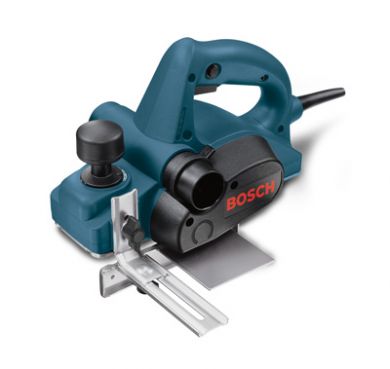

Model Number	3365
Amperage	5.0
No Load RPM	18,000
Weight (lbs.)	5
Rabbeting Depth	0 - 15/16″
Planing Depth	0 - 5/64″ (2.0mm)
Planing Width	0″ to 3-1/4″
Engineering Number	0603365187
Cord Length (ft.)	10
Shoe Length	10-3/4″
Rating	120V AC
